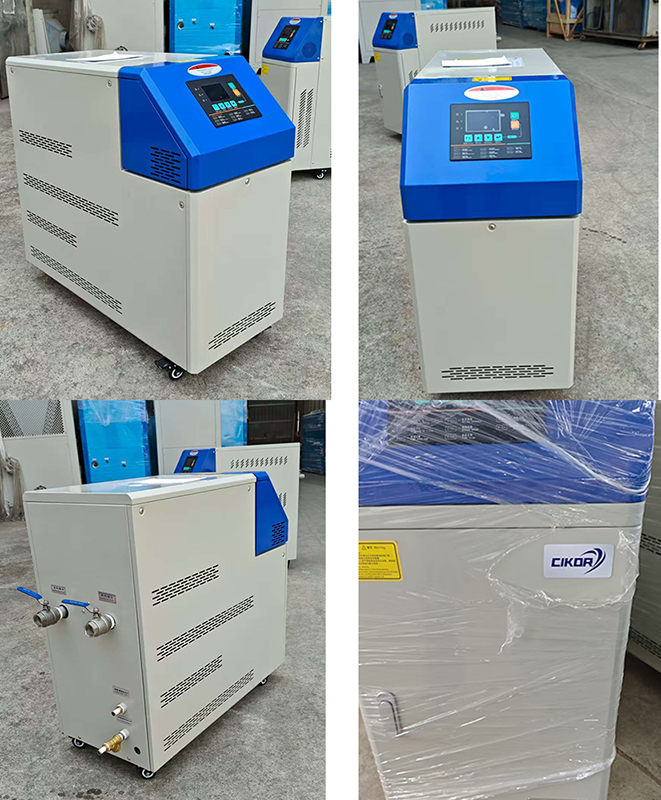

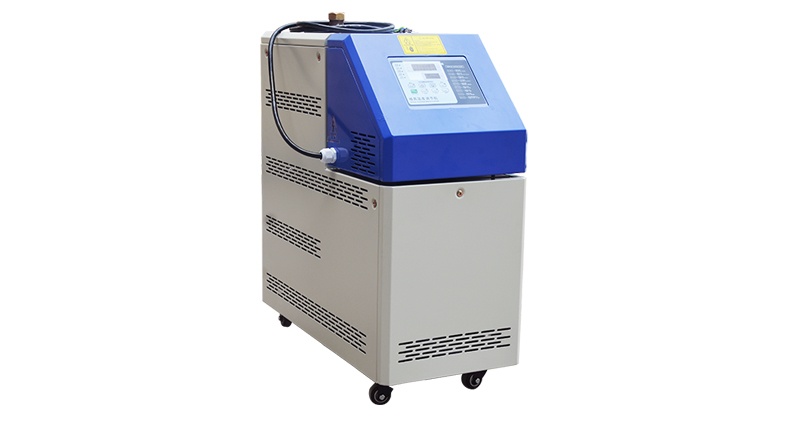

Water Temperature Controller

A mold temperature controller is a precision industrial device designed to manage the temperature of injection molds, die-casting molds, and other production equipment. Using either thermal oil or water circulation, it delivers precise heating or cooling to quickly raise, stabilize, or lower mold temperatures. The result? Superior product quality, shorter cycle times, and significantly improved production efficiency. Widely trusted across the plastics and die-casting industries, it's the key to consistent, high-performance manufacturing.

Features of mold temperature controller

Temperature accuracy

Fast heating and cooling response

Heating and cooling in one compact unit

Simple digital control with safety protection

Energy-saving operation

Reliable performance for plastics, die-casting, and more

Customizable: oil or water type, multi-zone options

Mold Temperature Controllers Type

Water Temperature Controller: The medium is water, with a maximum temperature typically reaching 90°C to 180°C. It is environmentally friendly and features rapid temperature control, making it suitable for general molding applications.

Oil Temperature Controller: The medium is thermal oil, with a maximum temperature reaching 200°C to 350°C or higher. It is suitable for applications requiring extremely high mold temperatures, such as engineering plastics or high-temperature die-casting.

Specifications of mold temperature controller

Water mold temperature controller	Model	Heat transfer media	Maximum temperature	Power supply	Heating power（KW）	Pump power（KW）	Pipe diameter	Dimensions （Lx W x H）	Weight（KG）
	CK-6KW-W	Water	100℃	3PH/ 380V-480V/ 50/60HZ	6	0.37	1/2"x2	670x300x620	45
	CK-9KW-W				9	0.37	1/2"x3	745x300x610	65
	CK-12KW-W				12	0.75	1/2"x4	745x300x620	70
	CK-18KW-W				9x2	0.75	1/2"x4	810x360x760	90
	CK-24KW-W				12x2	1.5	1/2"x4	918x450x820	100
Oil Mold Temperature Controller	CK-6KW-O	oil	180℃		6	0.37	1/2"x2	670x300x620	45
	CK-9KW-O				9	0.37	1/2"x3	745x300x610	65
	CK-12KW-O				12	0.37	1/2"x4	745x300x620	70
	CK-18KW-O				9x2	0.75	1/2"x4	810x360x760	90
	CK-24KW-O				12x2	15	1/2"x4	918x450x820	100
