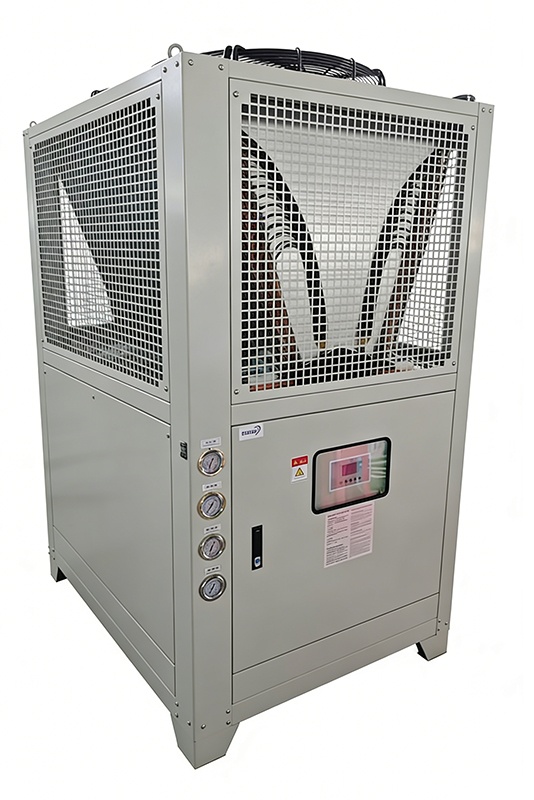

Air cooled heat pump

Air cooled heat pump

Heat pump is designed to provide circulating water for both cooling and heating applications, featuring two independent systems for cooling and heating. Widely used in electronics manufacturing, pharmaceutical and chemical industries, food processing, experimental research, sponge foaming, and other systems.

Intelligent Dual-Mode Operation

Cooling Mode: Absorbs indoor heat and releases it outdoors for efficient cooling.

Heating Mode: A reversing valve switches the flow, capturing heat from the outdoor air and delivering it indoors.

All-Climate Reliability: Advanced technology ensures stable performance even in low-temperature conditions—efficient, reliable, and ready for any season.

Air cooled heat pump specifications

Model			CK-3AH	CK-5AH		CK-8AH	CK-10AH	CK-12AH	CK-15AH	CK-20AH	CK-25AH
Water temperature range			5-60℃
Nominal Cooling Capacity		kW	8.1	13.5		20	28	35	41.8	55	65
Nominal Heating Capacity		kW	9.7	16.2		24	33.6	42	50.2	66	80
Power supply		V/ph/Hz	380/415/440V/3PH/50/60Hz
Compressor	Type		rotary		scroll
Compressor	Power	kW	2.7	4.55		3.6*2	4.55*2	9.82	13.72	9*2	9.82*2
Pump	Type		Stainless steel centrifugal type
	Power	kW	0.37	0.75		1.1	11	1.5	2.2	2.2	2.2
	Lift	m	20	20		20	20	20	20	20	20
Water flow		m3/h	1.3	2.3		3.5	4.57	5.1	7.2	9.42	11.2
Water flow		L/min	21.6	38.3		58.3	76	85	120	157	186
Condenser type			High efficiency copper finned tube with internal thread
Evaporator type			Stainless steel shell and tube type
Refrigerant			R410A
Refrigerant Control			Thermostatic expansion valve
Tank volume		L	50	50		100	150	150	200	300	300
Inlet and outlet size		DN	20	25		40	40	40	50	50	65
Dimension	L	mm	1600	1850		2000	2000	2450	3000	3000	3400
	W	mm	750	900		1050	1050	1050	1200	1200	1200
	H	mm	1425	1550		1650	1650	1700	1850	1850	1850
Weight	kg	345	390	580		760	880	1050	1250	1450	Weight

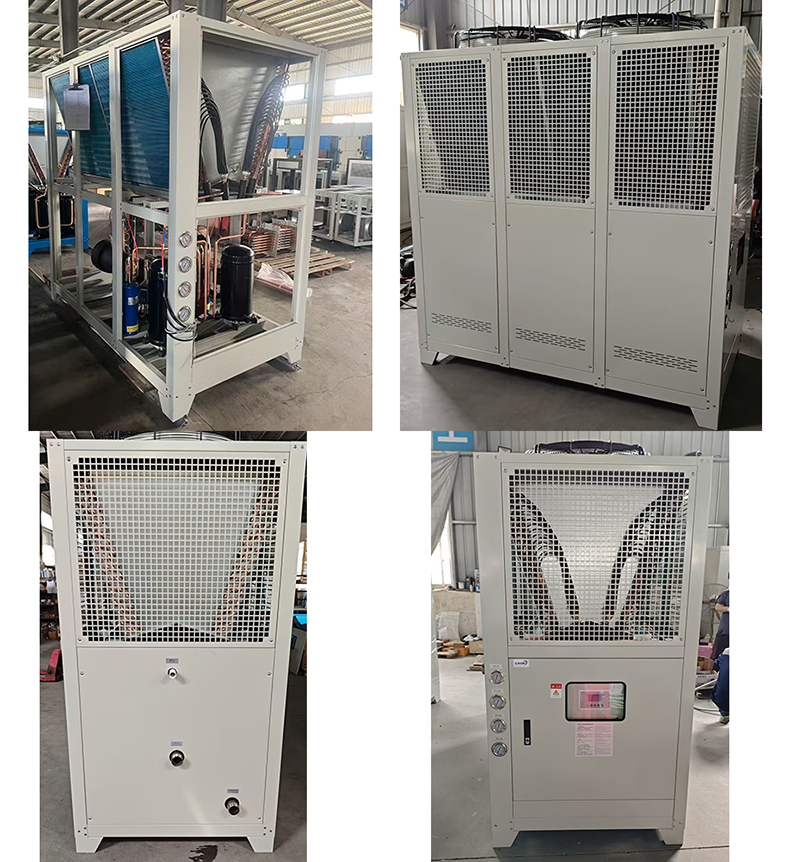

Air cooled heat pump pictures
