All in one packaged chiller features
The industrial all in one chiller unit,also known as a packaged chiller,is an integrated equipment designed for the industrial application. Integrated with the main components of chiller, chilled water tank, chilled water circulating water pump, process water pump, water piping system, all kinds of valves, and engineering control cabinets. Combine the project parts during the production line to save engineering labor cost.
With an integrated chiller, installation and operation become simpler and more convenient. These systems are pre-engineered, factory-tested, and ready-to-use, saving time and effort during setup. They are known for their space-saving footprint and ease of maintenance, making them a popular choice for various applications including industrial processes, commercial buildings, and data centers.
The integrated design ensures efficient heat transfer and precise temperature control, providing reliable and consistent cooling performance. These chillers are engineered to deliver optimal energy efficiency, helping businesses achieve cost savings and reduce their environmental impact.

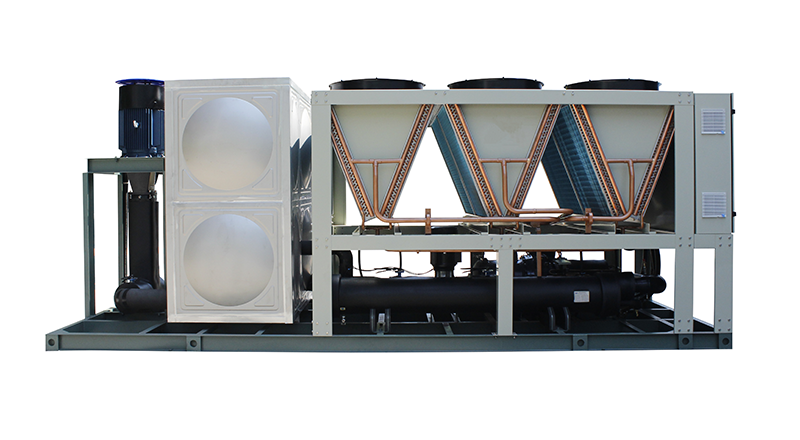

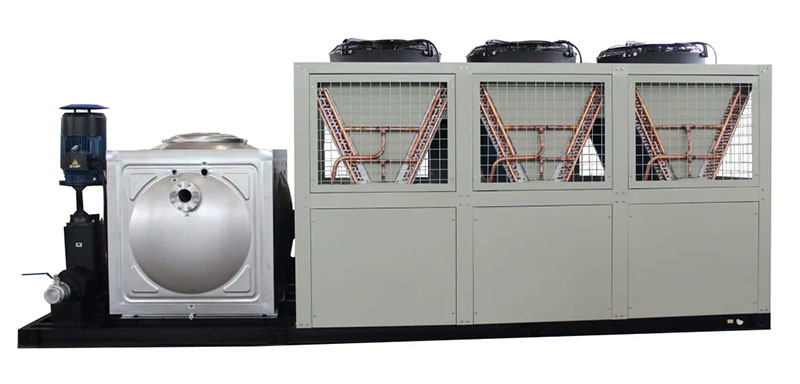

Air cooled package screw chiller technical data
Model
CKG-140A
CKG-200A
CKG-270A
CKG-320A
CKG-370A
CKG-400A
CKG-450A
Nominal cooling capacity KW
92
131
174
206
238
265
288
Compressor Input Power KW
23
33
43
50
57
61
69
Capacity control %
0 66 100
0 50 75 100
Charge of refrigerant kg
30
42
56
68
78
84
93
Axial fan
Airflow ×1000 m3/h
29
40
58
80
86
121
121
kW×Set
1.2×2
2.0×2
1.2×4
2.0×4
1.2×6
2.0×6
2.0×6
Evaporator
Dimension of inlet and outlet water pipein
2.5″
3″
3″
3″
4″
4″
4″
Water flow m3/h
16
22
30
35
41
46
50
Highest pressure on water side Mpa
1
1
1
1
1
1
1
Water dropKPa
28
33
48
55
61
64
66
Water pump
Circulation pump
Flow m3/h
20
25
30
40
40
50
50
Head m
20
18
20
22
22
23
23
Power kW
2.2
2.2
3
4
4
5.5
5.5
Process pump
Flow m3/h
16
16
28
28
36
36
40
Head m
54
54
53
53
52
52
51
Power kW
5.5
5.5
7.5
7.5
11
11
11
Water tank size (m3)
2
3
Operating sound dB(A)
68
68
68
68
72
72
72
Net weight kg
1740
2595
3885
4005
4125
4395
4740
Running weight kg
1905
2880
4215
4350
4530
4860
5175
Model
CKG-120W
CKG-160W
CKG-220W
CKG-290W
CKG-310W
CKG-370W
CKG-430W
Nominal cooling capacity KM
75
105
138
192
198
234
270
Compressor Input Power KW
15
19
24
34
35
40
46
Capacity control%
0 66 100
0 50 75 100
Charge of refrigerant kg
17
24
30
40
44
52
59
Condenser
Pipe size
2.5″
2.5″
3″
3″
3″
4″
4″
Water flow m3/h
15
21
28
39
40
47
54
Max pressure on water side Mpa
1
1
1
1
1
1
1
Water drop KPa
41
47
45
53
52
52
50
Evaporator
Pipe size
2″
2.5″
3″
3″
3″
3″
4″
Water flow m3/h
13
18
24
33
34
40
46
Max pressure on water side Mpa
1
1
1
1
1
1
1
Water drop KPa
22
28
32
35
45
55
61
Water pump
Circulation pump
Flow m3/h
13
20
25
30
30
40
50
Lift m
20
20
18
20
20
22
23
Power kW
1.5
2.2
2.2
3
3
4
5.5
Process pump
Flow m3/h
10
16
20
20
28
28
36
Head m
50
54
51
51
53
53
52
Power kW
4
5.5
5.5
5.5
7.5
7.5
11
Cooling pump
Water flow m3/h
15
25
30
40
40
50
50
Head m
30
30
35
30
30
29
29
Power kW
3
4
5.5
5.5
5.5
7.5
7.5
Water tank size m3
2
3
Operating sound dB(A)
73
74
75
75
75
75
75
Net weight kg
880
910
1080
1220
1390
1510
1620
Running weight kg
970
1010
1220
1380
1530
1670
1780

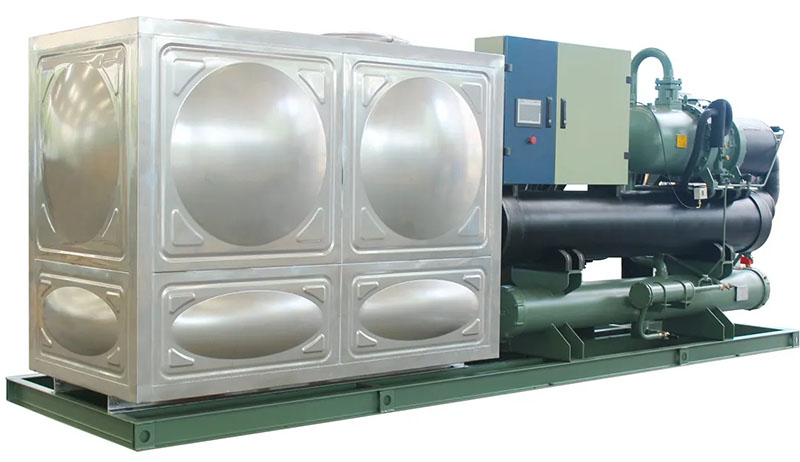

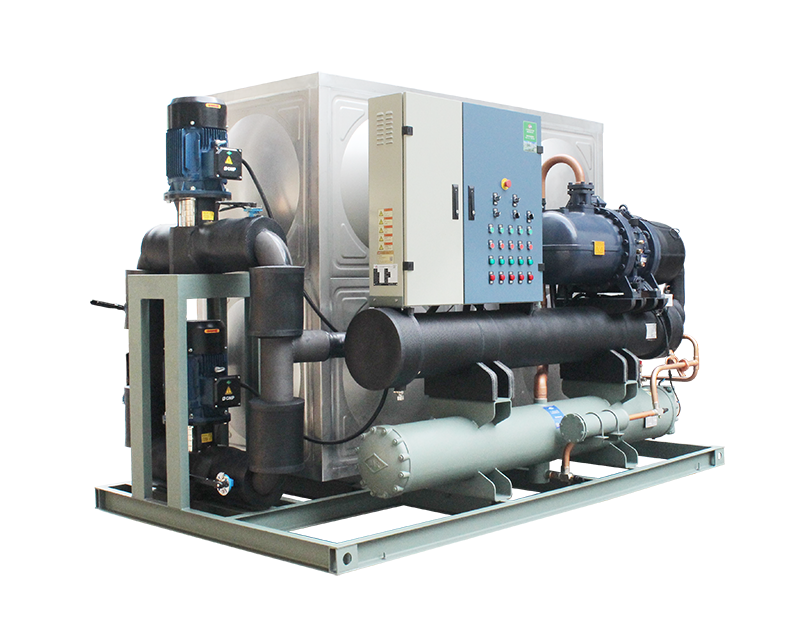

Water cooled all in one chiller
Water cooled all in one chiller technical data

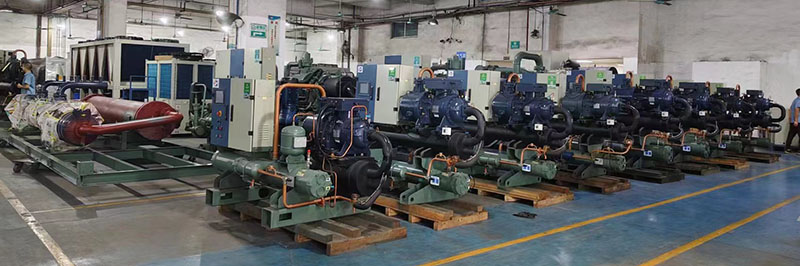

Water chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price
Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
