Jinan Cikor Machinery Co., Ltd.

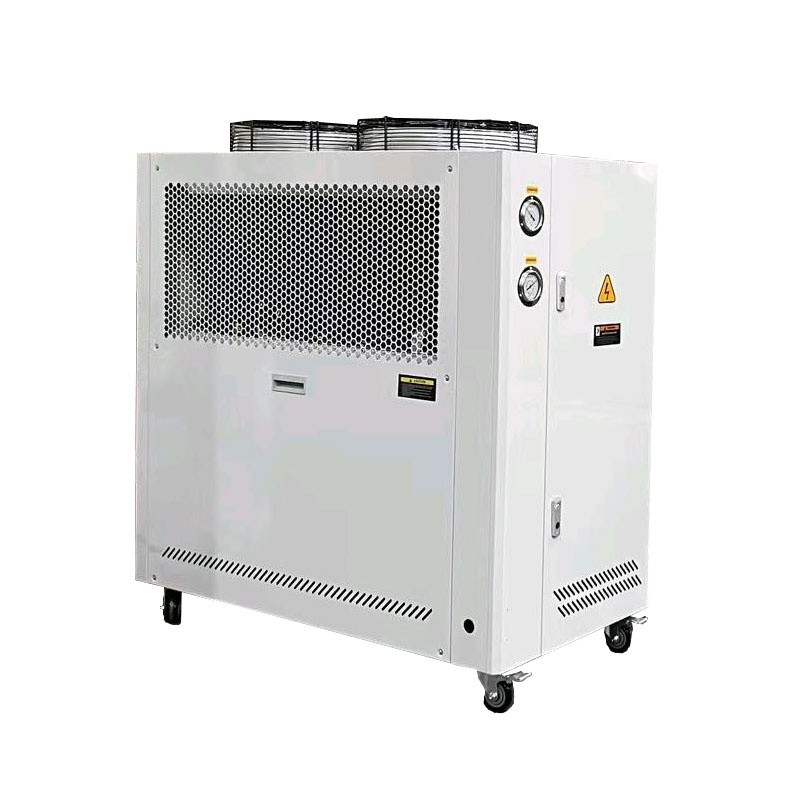

Air cooled scroll chiller features
World famous brand compressor: Panasonic,Sanyo,Copeland,Danfoss
Stainless steel centrifugal pump
Copper tube condenser
Easy installation,operation and maintenance
Model
CK-0.5A
CK-1A
CK-2A
CK-3A
CK-5A
CK-6A
CK-8A
CK-10A
CK-12A
CK-15A
CK-20A
CK-25A
CK-30A
CK-40A
Water temperature range
7-30℃
Control accuracy
±0.5℃&±1.5℃
Communication(Optional)
RS485 communication interface,MODBUS communication protocol
Cooling Capacity
kW
1.5
2.6
5.3
9.0
15.0
18.0
24.0
30.0
36.0
45.0
58.0
68.0
85.0
115.0
Power supply
220V/1PH/50Hz
380/415/440V/3PH/50/60Hz
Rated power
kW
0.8
1.3
2.2
3.2
5.5
5.8
7.9
9.8
10.8
13.8
20.0
22.0
30.0
37.0
Working current
A
3.5
6.5
10.0
7.0
11.5
12.6
15.0
18.0
21.0
28.5
38.0
41.0
60.0
71.5
Compressor
Type
High efficiency rotary type
Flexible scroll type
Power
kW
0.5
0.75
1.6
2.4
4.2
4.8
6.7
8.6
9.2
11.6
16.2
18.0
25.0
30.5
Pump
Type
Stainless steel centrifugal type
Power
kW
0.25
0.37
0.37
0.55
0.55
0.55
0.55
0.75
1.2
1.2
1.85
1.85
1.85
3.0
Lift
m
18
27
26
24
24
25
25
26
27
25
22
22
20
22
Water flow
m3/h
0.26
0.45
0.90
1.6
2.6
3.1
4.1
5.2
6.2
7.8
10.0
11.7
14.6
19.8
L/min
4.3
7.5
15
27
43
52
68
87
103
130
167
196
243
329
Condenser type
High efficiency copper finned tube with internal thread
Evaporator type
Stainless steel shell and tube type
Refrigerant
R22/R407C/R410A
Refrigerant Control
Capillary
Thermostatic expansion valve
Tank volume
L
12
20
35
60
70
70
100
155
155
230
230
230
300
300
Inlet and outlet size
DN
15
15
20
25
25
25
25
40
40
40
50
50
50
50
Noise
dB(A)
62
65
65
68
68
69
69
69
69
70
68
68
70
70
Weight
kg
48
85
115
162
195
245
270
310
345
390
580
760
880
1050
L
mm
420
600
600
1000
1200
1200
1600
1600
1600
1850
2000
2000
2450
3000
W
mm
420
520
600
550
600
600
750
750
750
900
1050
1050
1050
1200
H
mm
800
875
1075
1150
1200
1200
1400
1400
1425
1550
1650
1650
1700
1850
Air cooled scroll chiller specifications(CK-5A is the 5hp chiller)
5HP,10HP,15HP industrial chiller woking principle
Dimension
Industrial chillers work based on the following principles of operation.
Phase Change: When heated, a liquid coolant undergoes a phase change into a gas, and when the gaseous coolant is super cooled, it condenses back into a liquid.
Heat Flow: Heat energy always flows from an area of high concentration to an area of lower concentration
Air cooled industrial chiller spare parts
Compressors serve as heart of the cooling system. We use world famous brand,like Sanyo,Copeland,Danfoss to ensure the reliability of the chiller.
Copper tube condenser and stainless steel evaporator help the high efficiency and long lifespan of the chiller.
Tank with coil and shell tube evaporator for your choice
Microcomputer controller
Industrial chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in good quality with competitive price
Customer user site of water chiller
Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
