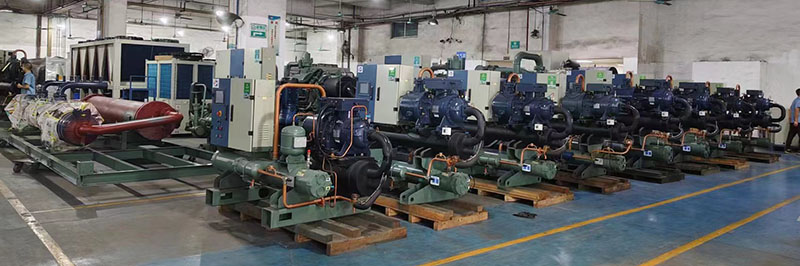

Jinan Cikor Machinery Co., Ltd.

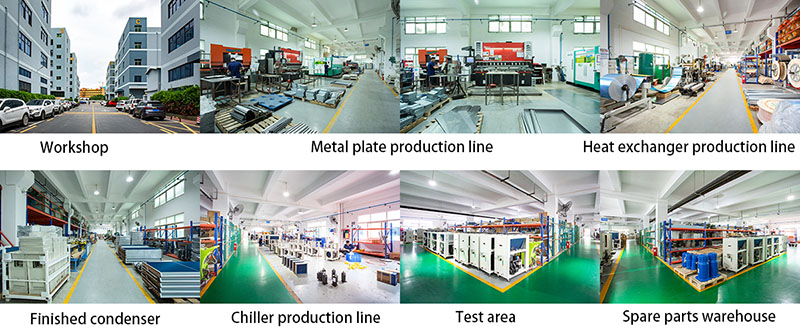

Industrial chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in good quality with competitive price.Industrial chiller cooling capacity ranges from 1.5~1160kw.
New generation screw compressor with high operation efficiency
Most efficient full load and part load operation
Variable speed drives option
Highly effective at rapidly lowering temperatures
Water cooled screw chiller specifications
|
Model |
CKG-350WD |
CKG-385WD |
CKG-465WD |
CKG-515WD |
CKG-608WD |
CKG-660WD |
|||
|
Cooling Capacity |
kW |
350 |
385 |
465 |
515 |
608 |
660 |
||
|
Cooling Capacity |
V/ph/Hz |
380/3/50 |
|||||||
|
Rated power |
kW |
78.5 |
87.0 |
106.0 |
115.0 |
130.0 |
138.0 |
||
|
Compressor |
Type/energy regulation |
Advanced asymmetrical semi-enclosed screw type / 0-25%-50%-75%-100% |
|||||||
|
Evaporator |
Type |
Horizontal shell and tube type high efficiency heat exchanger |
|||||||
|
Flow |
m³/h |
60.0 |
66.2 |
80.0 |
88.6 |
105.0 |
114.0 |
||
|
Pipe size |
DN |
DN125 |
DN150 |
||||||
|
Condenser |
Type |
Horizontal shell and tube type high efficiency heat exchanger |
|||||||
|
Flow |
m³/h |
75.3 |
82.8 |
100.0 |
110.8 |
130.8 |
142.0 |
||
|
Pipe size |
DN |
DN125 |
DN150 |
||||||
|
Safety protection |
High and low pressure, water flow, overcurrent, safety valve, power supply protection, oil level, exhaust temperature, antifreeze, etc |
||||||||
|
Weight |
kg |
1370 |
2410 |
2600 |
2700 |
2900 |
3050 |
||
|
Dimension |
L |
mm |
3980 |
3980 |
3980 |
4060 |
4060 |
4060 |
|
|
W |
mm |
1170 |
1170 |
1170 |
1320 |
1320 |
1320 |
||
|
H |
mm |
1660 |
1660 |
1660 |
1700 |
1700 |
1700 |
||
|
Model |
CKG-700WD |
CKG-760WD |
CKG-835WD |
CKG-990WD |
CKG-1050WD |
CKG-1160WD |
|||
|
Cooling Capacity |
kW |
700 |
760 |
835 |
990 |
1050 |
1160 |
||
|
Cooling Capacity |
V/ph/Hz |
380/3/50 |
|||||||
|
Rated power |
kW |
150.0 |
164.0 |
182.0 |
211.0 |
223.0 |
245.0 |
||
|
Compressor |
Type/energy regulation |
Advanced asymmetrical semi-enclosed screw type / 0-25%-50%-75%-100% |
|||||||
|
Evaporator |
Type |
Horizontal shell and tube type high efficiency heat exchanger |
|||||||
|
Flow |
m³/h |
120.5 |
130.8 |
143.6 |
170.3 |
180.0 |
200.0 |
||
|
Pipe size |
DN |
DN150 |
DN200 |
||||||
|
Condenser |
Type |
Horizontal shell and tube type high efficiency heat exchanger |
|||||||
|
Flow |
m³/h |
150.5 |
163.5 |
180.0 |
213.0 |
226.0 |
250.0 |
||
|
Pipe size |
DN |
DN150 |
DN200 |
||||||
|
Safety protection |
High and low pressure, water flow, overcurrent, safety valve, power supply protection, oil level, exhaustntemperature, antifreeze, etc |
||||||||
|
Weight |
kg |
3450 |
3700 |
3900 |
4200 |
4400 |
4650 |
||
|
Dimension |
L |
mm |
4270 |
4270 |
4270 |
4290 |
4290 |
4700 |
|
|
W |
mm |
1320 |
1340 |
1340 |
1450 |
1450 |
1450 |
||
|
H |
mm |
1700 |
1950 |
1950 |
2035 |
2035 |
2035 |
||
Customer user site of industrial chiller
Application of industrial chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
