With two distinct and separately installed sections, split system chillers feature an indoor evaporator and compressor and an outdoor air-cooled condenser.
Split chiller specifications
|
Model |
CK-03F |
CK-05F |
CK-06F |
CK-08F |
CK-10F |
CK-12F |
CK-15F |
CK-20F |
CK-25F |
CK-30F |
CK-40F |
|||
|
Water temperature range |
7-30℃ |
|||||||||||||
|
Control accuracy |
±0.5℃&±1.5℃ |
|||||||||||||
|
Communication(Optional) |
RS485 communication interface,MODBUS communication protocol |
|||||||||||||
|
Cooling Capacity |
kW |
9.0 |
15.0 |
18.0 |
24.0 |
30.0 |
36.0 |
45.0 |
58.0 |
68.0 |
85.0 |
115.0 |
||
|
Power supply |
V/ph/Hz |
380/3/50 |
||||||||||||
|
Rated power |
kW |
3.2 |
5.5 |
5.8 |
7.8 |
9.8 |
11.5 |
13.8 |
20.0 |
22.0 |
30.0 |
35.3 |
||
|
Working current |
A |
7.0 |
11.5 |
12.6 |
15.0 |
18.0 |
21.8 |
28.5 |
38.0 |
41.0 |
60.0 |
68.0 |
||
|
Compressor |
Type |
Rotary |
Flexible scroll type |
|||||||||||
|
Power |
kW |
2.4 |
4.2 |
4.8 |
6.7 |
8.6 |
9.2 |
11.6 |
16.2 |
18.0 |
25.0 |
30.5 |
||
|
Pump |
Type |
Stainless steel centrifugal type |
||||||||||||
|
Power |
kW |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
1.2 |
1.2 |
1.85 |
1.85 |
1.85 |
3.0 |
||
|
Lift |
m |
24 |
24 |
25 |
25 |
26 |
27 |
25 |
25 |
24 |
23 |
22 |
||
|
Water flow |
m3/h |
1.6 |
2.6 |
3.1 |
4.1 |
5.2 |
6.2 |
7.8 |
10.0 |
11.7 |
14.6 |
19.8 |
||
|
L/min |
27 |
43 |
52 |
68 |
87 |
103 |
130 |
167 |
196 |
243 |
329 |
|||
|
Condenser type |
High efficiency copper finned tube with internal thread |
|||||||||||||
|
Evaporator type |
Stainless steel shell and tube type |
|||||||||||||
|
Refrigerant |
R22/R407C/R410A |
|||||||||||||
|
Refrigerant Control |
Capillary |
Thermostatic expansion valve |
||||||||||||
|
Tank volume |
L |
60 |
70 |
70 |
100 |
135 |
135 |
230 |
230 |
230 |
300 |
300 |
||
|
Inlet and outlet size |
DN |
25 |
25 |
25 |
25 |
40 |
40 |
40 |
50 |
50 |
50 |
50 |
||
|
Noise |
dB(A) |
68 |
68 |
69 |
69 |
69 |
69 |
68 |
68 |
68 |
70 |
70 |
||
|
Weight |
kg |
190 |
250 |
290 |
330 |
380 |
400 |
460 |
680 |
820 |
1020 |
1250 |
||
|
Dimension |
L |
mm |
850/950 |
850/950 |
1220/950 |
1220/1200 |
1220/1700 |
1500/1700 |
1220/1900 |
2080/1610 |
2080/1610 |
2080/1610 |
2200/905 |
|
|
W |
mm |
720/390 |
720/390 |
720/390 |
720/380 |
720/550 |
720/550 |
720/500 |
1050/905 |
1050/905 |
1050/905 |
1200/905 |
||
|
H |
mm |
1265/750 |
1265/1070 |
1265/1070 |
1265/1350 |
1265/750 |
1265/750 |
1265/950 |
1570/1565 |
1570/1565 |
1570/1565 |
1570/1565 |
||

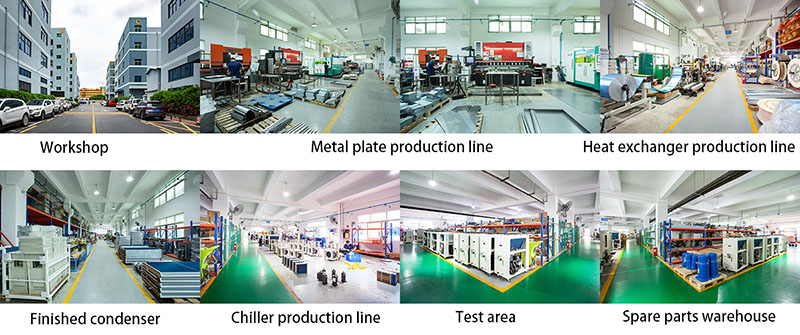

With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price.
