Jinan Cikor Machinery Co., Ltd.
Outlet temperature range: -15 deg C ~30 deg C
Stainless steel centrifugal pump
Copper tube condenser
Easy installation,operation and maintenance
Low temperature glycol chiller specifications
Model
CK-03Z
CK-05Z
CK-06Z
CK-08Z
CK-10Z
CK-12Z
CK-15Z
CK-20Z
CK-25Z
CK-30Z
CK-40Z
CK-50Z
Water temperature range
-5-+30℃
Control accuracy
±0.5℃&±1.5℃
Communication(Optional)
RS485 communication interface,MODBUS communication protocol
Cooling Capacity
kW
4.6
7.0
8.5
10.8
15.0
18.0
23.5
30.0
36.0
45.0
60.0
73.0
Power supply
V/ph/Hz
380/3/50
Rated power
kW
3.3
4.8
6.0
7.4
9.3
10.9
15.0
20.0
21.9
27.8
37.5
42.0
Working current
A
7.2
10.5
13.0
16.2
20.0
23.5
32.8
45.5
49.5
62.0
85.0
97.0
Compressor
Type
Rotary
Flexible scroll type
Power
kW
2.4
3.8
5.0
6.3
8.0
9.2
11.6
16.2
17.8
22.9
32.2
35.8
Pump
Type
Stainless steel centrifugal type
Power
kW
0.55
0.55
0.55
0.55
0.75
1.2
1.2
1.85
1.85
1.85
3.0
3.0
Lift
m
22
21
21
25
22
23
20
21
22
22
23
23
Water flow
m3/h
0.8
1.2
1.5
1.9
2.6
3.1
4.0
5.2
6.2
7.7
10.3
12.6
L/min
13.1
20.0
24.3
31.0
43.0
51.6
67
86
103
130
172
209
Condenser type
High efficiency copper finned tube with internal thread
Evaporator type
Stainless steel shell and tube type
Refrigerant
R22/R407C/R410A
Refrigerant Control
Thermostatic expansion valve
Tank volume
L
50
70
70
100
155
155
230
230
230
230
300
300
Inlet and outlet size
DN
25
25
25
25
40
40
40
50
50
50
50
65
Noise
dB(A)
63
66
66
67
68
68
66
66
67
68
69
72
Weight
kg
165
200
230
260
295
320
390
590
755
890
1080
1290
Dimension
L
mm
1000
1200
1200
1600
1600
1600
1850
2000
2000
2450
3000
3000
W
mm
550
600
600
750
750
750
900
1050
1050
1050
1200
1200
H
mm
1150
1200
1200
1400
1400
1425
1550
1065
1065
1700
1850
1850

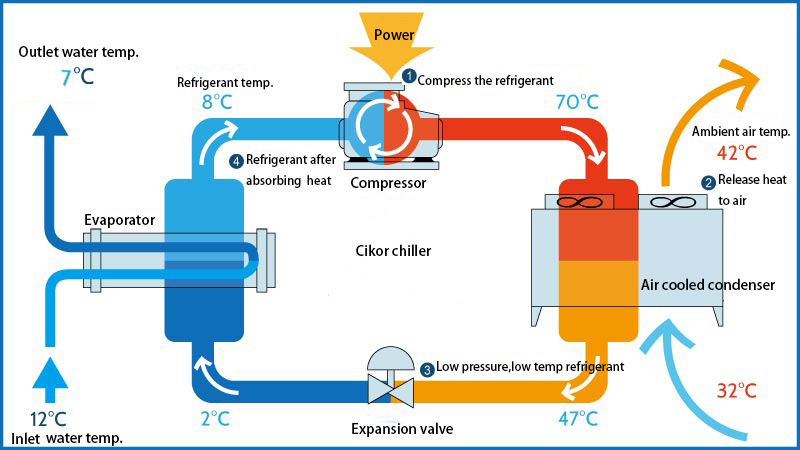

Low temperature glycol chiller woking principle
Phase Change: When heated, a liquid coolant undergoes a phase change into a gas, and when the gaseous coolant is super cooled, it condenses back into a liquid.
Heat Flow: Heat energy always flows from an area of high concentration to an area of lower concentration

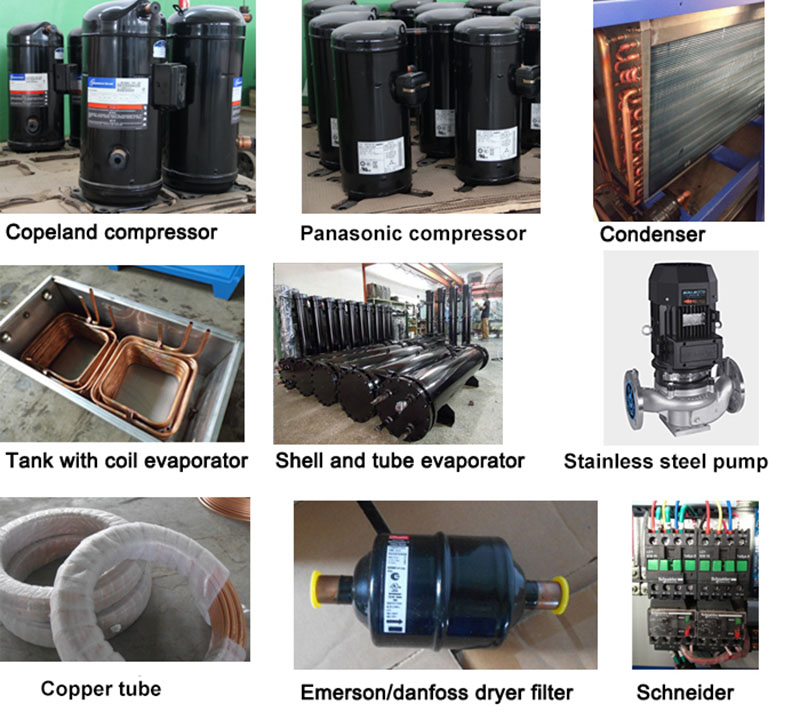

Low temperature glycol chiller spare parts
Compressors serve as heart of the cooling system. We use world famous brand,like Sanyo,Copeland,Danfoss to ensure the reliability of the chiller.
Copper tube condenser and stainless steel evaporator help the high efficiency and long lifespan of the chiller.
Tank with coil and shell tube evaporator for your choice
Microcomputer controller

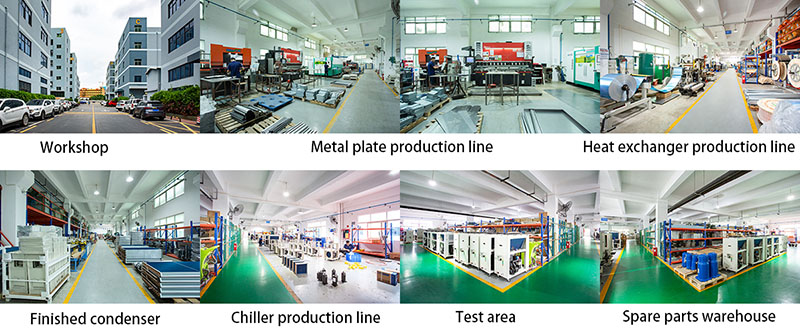

Water chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price
