Jinan Cikor Machinery Co., Ltd.

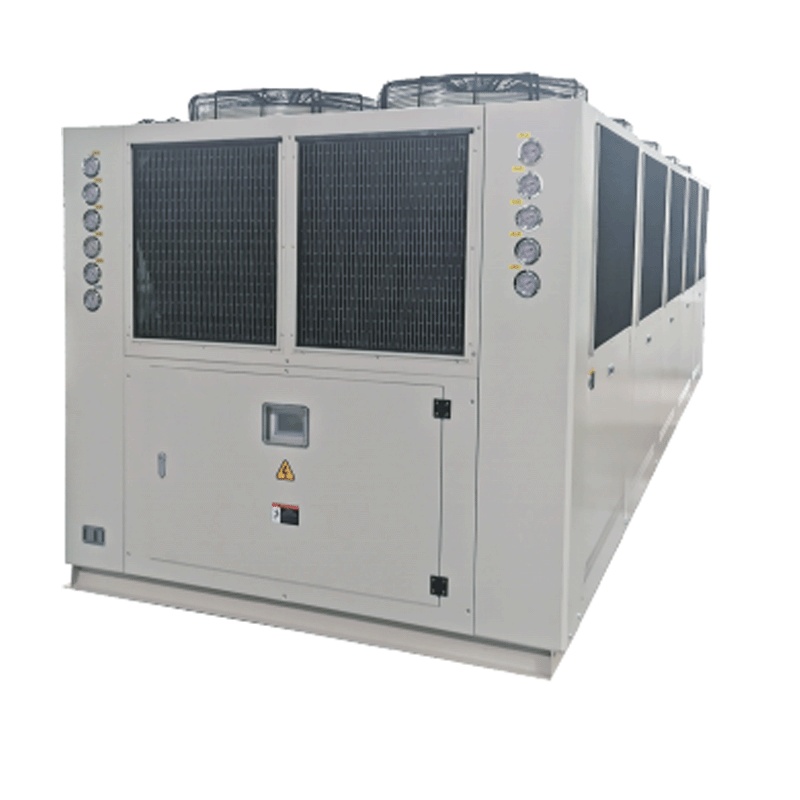

Air cooled scroll chiller features
World famous brand compressor: Panasonic,Sanyo,Copeland,Danfoss
Stainless steel centrifugal pump (optional)
Copper tube condenser
Easy installation,operation and maintenance
Model
KWX-20A
KWX-25A
KWX-40A
KWX-50A
KWX-75A
KWX-100A
KWX-125A
KWX-150A
Water temperature range
7-30℃
Control accuracy
± 1.5℃
Communication(Optional)
RS485 communication interface,MODBUS communication protocol
Cooling Capacity
kW
58.0
68.0
115.0
140.0
210.0
280.0
350.0
420.0
Power supply
380/415/440/460V/3ph/50Hz
Rated power((Not including pump))
kW
17.6
19.8
35.0
39.5
60.0
79.0
99.0
118.0
Working current(Not including pump)
A
39.0
43.8
78.0
87.0
131.0
175.0
218.0
260.0
Compressor
Type
Flexible scroll type
Power
kW
16.0
18.0
32.5
36.5
55.0
73.0
93.0
110.0
Pump(Optional)
Type
Stainless steel centrifugal type
Power
kW
1.85
1.85
3.0
3.0
5.5
7.5
7.5
11.0
Lift
m
25
24
28.0
27.0
23.0
28.0
23.5
21.0
Water flow
m3/h
10.0
11.7
19.8
24.0
36. 1
48.0
60.2
72.2
L/min
167.0
195.0
330.0
400.0
600.0
800.0
1000.0
1200.0
Condenser type
High efficiency copper finned tube with internal thread
Evaporator type
Shell and tube type
Refrigerant
R22/R410A/R407C
R410A
Refrigerant Control
Thermostatic expansion valve
Tank volume
L
50
50
50
65
80
80
100
125
Inlet and outlet size
DN
69
70
71
71
72
73
74
75
Noise
dB(A)
600
750
1150
1280
1900
2500
2900
3350
Weight
kg
2000
2000
3000
3000
3500
4600
5850
6950
Dimension
L
mm
1050
1050
1200
1200
2000
2000
2000
2000
W
mm
1650
1650
1850
1850
1850
1850
1850
1850
Air cooled scroll chiller specifications
Air cooled scroll chiller woking principle
Industrial chillers work based on the following principles of operation.
Phase Change: When heated, a liquid coolant undergoes a phase change into a gas, and when the gaseous coolant is super cooled, it condenses back into a liquid.
Heat Flow: Heat energy always flows from an area of high concentration to an area of lower concentration
Air cooled scroll chiller spare parts
Compressors serve as heart of the cooling system. We use world famous brand,like Sanyo,Copeland,Danfoss to ensure the reliability of the chiller.
Copper tube condenser and stainless steel evaporator help the high efficiency and long lifespan of the chiller.
Tank with coil and shell tube evaporator for your choice
Microcomputer controller
Water chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price
Customer user site of water chiller
Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
